AIRBFT Adjustable Lowering Links Kit For IM LS6 Lizard Digital Chassis Factory Air Suspension

AIRBFT custom adjustable height sensor lowering links exclusively designed for IM LS6 equipped with factory intelligent air suspension, CDC continuous damping control & Lizard Digital Chassis 2.0 VMC integrated chassis control system. This bolt-on 4-piece kit directly replaces OEM fixed plastic sensor rods, delivering stepless customizable lowering while fully retaining all native chassis intelligent functions. No ECU coding, wiring cutting, software flashing or chassis modification required; zero suspension fault codes on central touchscreen, fully reversible back to factory stock ride height at any time. IM LS6 air suspension relies on four height sensor rods to transmit chassis height signals to the VMC integrated control unit. AIRBFT threaded adjustable links mechanically alter sensor feedback geometry. The vehicle’s digital chassis system automatically compensates signal data and evenly lowers the whole body across all factory height presets, achieving a flush sporty stance without overloading air springs, air compressor or damaging the original air suspension structure.

EV Styling & Performance Advantages

1. Lower center of gravity reduces body roll during fast cornering, sharpens steering response and high-speed stability
2. Eliminate bulky factory wheel arch gap for sleek low-profile sport SUV stance
3. Reduce frontal aerodynamic drag, cut highway power consumption and extend real-world CLTC cruising range
4. Retain complete factory lift capability for daily practicality and rough road passing
5. Avoid expensive ECU reprogramming or permanent suspension bracket modification

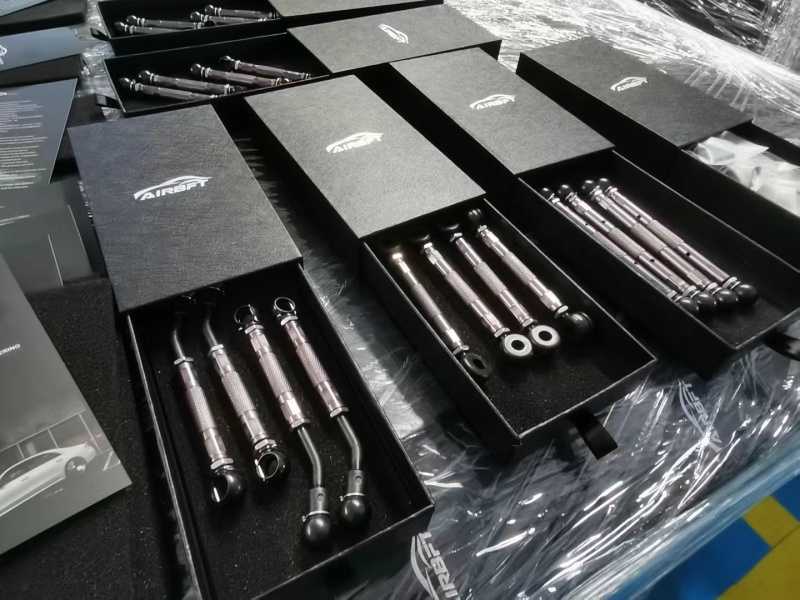

Complete Kit Contents

• 2 × Front adjustable lowering links
• 2 × Rear adjustable lowering links
• Stainless steel anti-loose lock nuts + thread locker
• Dedicated IM LS6 step-by-step installation manual
• Silicone maintenance grease for long ball joint service life

Professional Installation Steps

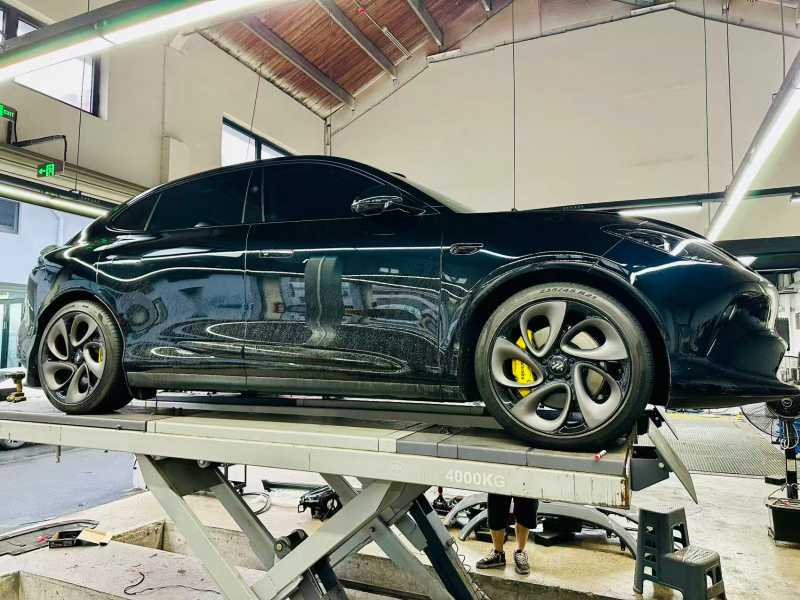

1. Activate Jack Maintenance Mode via IM central touchscreen to lock air suspension before lifting vehicle

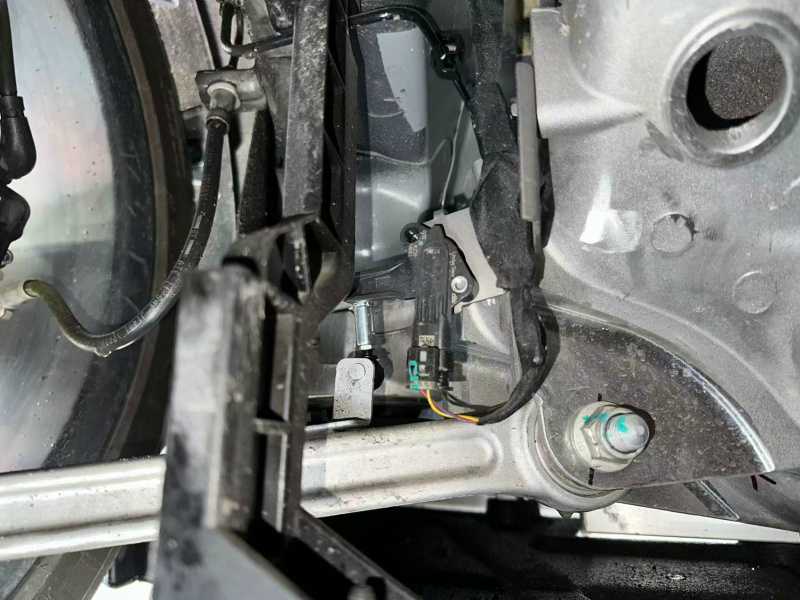

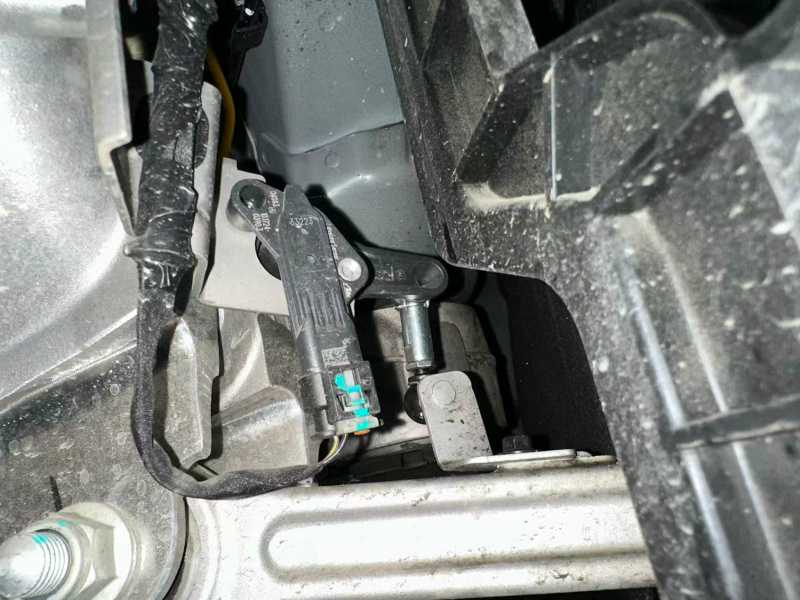

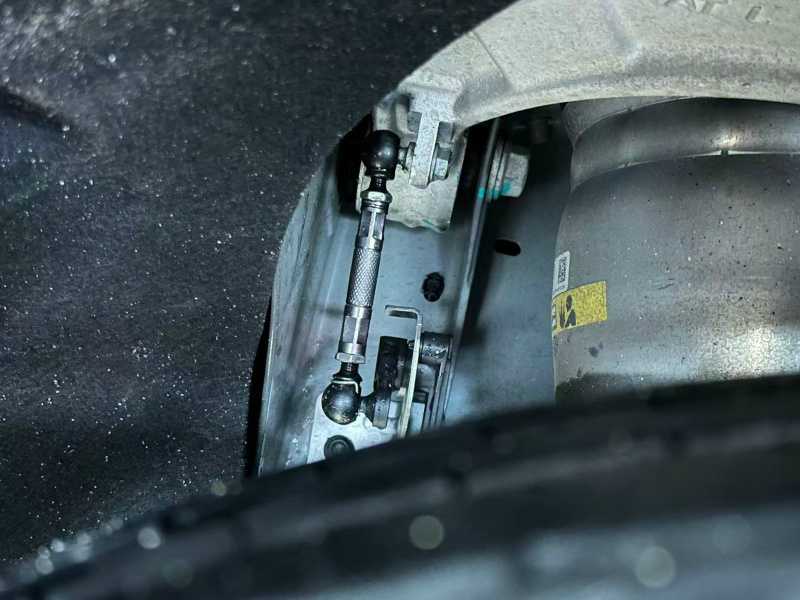

2. Remove factory plastic height sensor rods and mount AIRBFT adjustable links
3. Rotate threaded barrel to set target drop height, fully tighten dual lock nuts to prevent loosening during height cycling
4. Lower vehicle on flat ground, exit Jack Mode, cycle suspension through all 5 height modes (Max High → Low Sport) for VMC sensor calibration
5. Complete four-wheel alignment post-install to prevent premature inner tire wear
